Electrical

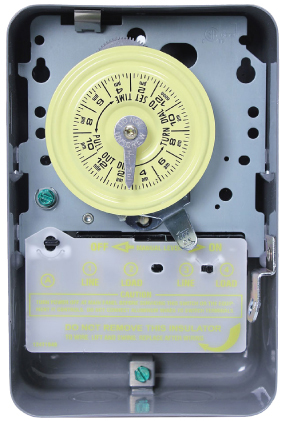

  • 24-HOUR TIMER – DPST (601542)

    Double-pole, single throw
    Includes 2 ON-trippers, 2 OFF-trippers
    General-purpose Nema-1

    ITEM # MFG # VOLTAGE PKG. QTY.
    601542 T104 240V BOX 1/12

  • 3-1/2″ ROUND COVER (662164)

    Flat covers are used to close an outlet box or mount a device
    Keyhole mounting feature allows for installation of cover without removing box screws

    ITEM # MFG # PKG. QTY.
    662164 703 BOX 1/25

  • 3-IN-1 70 CFM HEATER/FAN/LIGHT (653113)

    Designer-styled white polymeric grille complements virtually any decor
    Fan and heater function independently or together
    Bright 100-watt light capacity (bulb not included)
    20-amp circuit required
    Type IC (Insulation Contact)

    ITEM # MFG # SONES PKG. QTY.
    653113 655 4 BOX 1

  • 3-IN-1 COMBINATION SMOKE/CO/NATURAL GAS ALARM (282190)

    Ionization sensor
    120V AC wired-in
    9V battery backup
    Microprocessor virtually eliminates nuisance alarms
    Product end-of-service-life warning
    Testreset button
    Quick-draw battery drawer
    4 LEDs Indicate Power, smoke, CO & gas
    Interconnectable up to 24 compatible devices
    Tamper-resistant locking feature
    Battery activation pull tab
    9V super heavy-duty battery included
    Loud 85dB alarm
    Listed to UL2034 standard
    5-YEAR LIMITED WARRANTY

    ITEM # MFG # PKG. QTY.
    282190 MICN109 BULK 1/6

  • 3/8″ SET SCREW connector (624117)

    Zinc alloy
    38″ Greenfield (flex)
    142,123 BX

    ITEM # MFG # SIZE PKG. QTY.
    624117 130 3/8 IN. BOX 1/100

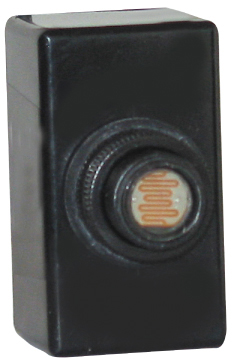

  • 3000 SERIES PHOTOCONTROL (610403)

    Flush mounting
    Lexan housing
    Delay of up to two minutes prevents false switching due to momentary flashes of light
    Flush mounting through 1116″ hole in post lantern or lighting fixture 38″ NPT, Stem 34″ long
    Gasket and nut supplied
    Temperature range -40 to +140 F (-40 to +60 C)

    ITEM # MFG # RATING AMPS VOLTAGE PKG. QTY.
    610403 3000 1500W/1200VA 40A 120V BOX 1

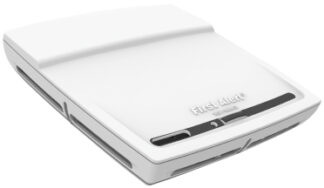

  • FIRST ALERT PHOTOELECTRIC 10 YEAR TAMPER PROOF SMOKE ALARM (2473563)

    10-year lithium power – 10 years of continuous protection
    No battery change required
    Tamperproof Sealed Alarm – Powercell cannot be removed
    Photoelectric smoke sensing technology
    Silence feature
    Tamper-resistant mounting bracket – Locks alarm to mounting bracket
    Perfect for apartment and dormitory applications
    Meets California Senate Bill #745 requirements
    10-YEAR LIMITED WARRANTY

    ITEM # MFG # PKG. QTY.
    2473563 P910B BOX 1/12

  • 4-GANG NEW WORK BOX (669012)

    Four-gang with captive nails and bracket
    60 cu in

    ITEM # MFG # PKG. QTY.
    669012 B455A-UPC BOX 1/25

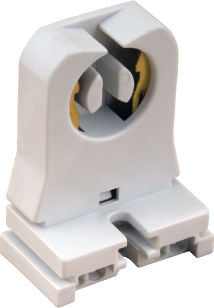

  • FLUORESCENT BI-PIN SOCKET (612319)

    Most common replacement socket found in many types of fluorescent light fixtures

    ITEM # PKG. QTY.
    612319 BOX 1/48

  • 4″ OCTAGON EXTENSION (662163)

    Extension rings provide a means for adding additional cubic capacity to a box or as an outlet box for surface conduit
    Not designed for ceiling fan support
    Combination screw heads allow for fast cover or fixture installation
    1-1/2″ deep
    50 lbs max recommended support load

    ITEM # MFG # DESC. KNOCKOUTS PKG. QTY.
    662163 130 15.5 C. 2-12 IN. & 2-3/4 IN. BOX 1/25

  • 4″ ROUND CEILING/FIXTURE BOX WITH BAR HANGER (669113)

    For new work with nonmetallic sheathed cable
    Cable mounting – minimum-16-1/2″, maximum-27″
    Reinforced phenolic
    4″W x 2-38″D
    208 cu in

    ITEM # MFG # PKG. QTY.
    669113 4070-95 BOX 1/50

  • 4″ ROUND PRESS-ON FAN/FIXTURE BOX (621679)

    Ready to install for fast, secure installations
    Gripping tangs hold box in place while you reach for your screwdriver
    Supports fixture or fans weighing up to 70 lbs

    ITEM # MFG # DESC. PKG. QTY.
    621679 FB415 10.5 C.I. BOX 1/25

  • 4″ ROUND WEATHERPROOF COVER (669023)

    4″ ROUND WEATHERPROOF COVER

    ITEM # MFG # COLOR/
    FINISH    		 PKG. QTY.
    669023 E365C-CAR GRAY BOX 1/20

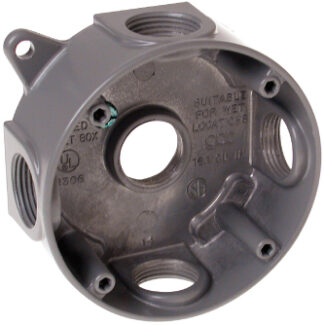

  • 4″ ROUND WEATHERPROOF SPLICE BOX WITH 5-3/4″ OUTLETS (662184)

    For use in branch circuit wiring in wet, damp, or dry locations
    Designed for use as a weatherproof junction box, and may be used with Bell® round cluster covers and round lampholder combinations
    Rugged die-cast aluminum construction
    Reinforced conector outlets
    State-of-the-art powder coat finish
    Cast-in mounting lugs provide fast, secure installation
    Includes four closure plugs, installed ground screw, and multilingual instructions
    1-1/2″ deep

    ITEM # MFG # DESC. PKG. QTY.
    662184 5372-0 16 C.I. BOX 1/36

  • 4″ SQUARE BOX WITH B BRACKET AND MC/BX CABLE CLAMPS (662167)

    Boxes are installed in ceilings or walls for lighting fixtures, switches or receptacles
    Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
    Features RACO’s patented TKO 1/2″ & 34″ eccentric knockouts (Per UL 514-A, suitable for use without a bonding jumper in circuits above or below 250 volts)
    Combination cover screw heads provide for faster mudring & cover installation
    Bracket face mounts on front edge of stud and is used when space between studs is limited
    1-1/2″ deep

    ITEM # MFG # DESC. KNOCKOUTS PKG. QTY.
    662167 224 21 C.I. 2, 1/2″ & 1, TKO & 4 PRIOUTS BOX 1/25

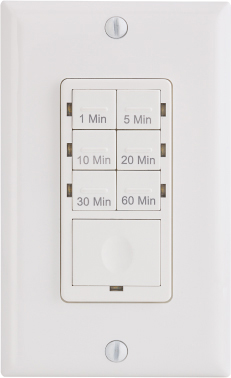

  • IN-WALL PRESET TIME SWITCH (106798)

    Controls lights and fans
    With manual on/off switch
    6 preset settings 1 minute to 60 minutes
    120V
    800W
    14 HP motor
    Compatible with electronicmagnetic fluorescent ballast, electronic magnetic low-voltage ballast, incandescent lamps and fans

    ITEM # COLOR/
    FINISH    		 PKG. QTY.
    106798 WHITE BOX 1/40

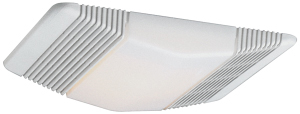

  • 50 CFM EXHAUST FAN/LIGHT (F002721)

    Fan and light operate separately or together
    Use in tubshower enclosure with GFI branch circuit wiring
    Incandescent bulb – not included
    Graceful white polymeric grille

    ITEM # MFG # SONES PKG. QTY.
    F002721 763RLN 2.5 BOX 1

  • 50′ PHONE HOOK-UP WIRE (852059)

    Three conductor wire
    Can be used with both standard and modular accessories

    ITEM # COLOR/
    FINISH    		 PKG. QTY.
    852059 IVORY CARD 1/6

  • LAMPHOLDER (612512)

    Medium base
    18″ female hickey
    Phenolic
    660W-250V
    With 16″ leads

    ITEM # PKG. QTY.
    612512 BAG 1/50

  • 600 WATT UNIVERSAL OCCUPANCY SENSOR (2472837)

    PIR wall box occupancy detector for use with LED, CFL, and incandescent lamps
    Color change kit provided in white, ivory, and light almond
    Single-pole
    Adjustment Auto on
    Pattern degrees 180
    Coverage (Sq Ft) 900 Sq Ft
    Time Adjustment 30s-30m
    Load Rating 600W Incandescent, 150W LED and CFL
    Voltage 120 Volt AC 60 Hz
    Neutral Not required
    Color white, ivory, light almond

    ITEM # MFG # QTY.
    2472837 IPS05-1LZ 1/4

  • 600 WATT UNIVERSAL VACANCY SENSOR (2472839)

    PIR wall box vacancy detector for use with LED, CFL, and incandescent lamps
    Color change kit provided in white, ivory, and light almond
    Single-pole
    Adjustment manual on
    Sensor technology passive infrared
    Pattern degrees 180
    Coverage (Sq Ft) 900 Sq Ft
    Time adjustment 30s-30m
    Load rating 600W incandescent FL ballast 150W LEDCFL, 16 HP motor
    Voltage 120 volt AC 60 Hz
    Neutral not required
    Colors white, ivory, light almond

    ITEM # MFG # QTY.
    2472839 IPV05-1LZ 1/4

  • 600W CLEAR ILLUMINATED TOGGLE DIMMER – 3-WAY (2464300)

    In the off position, the clear toggle handle glows in the dark
    The perfect solution for those hard to locate switches in dark rooms, hallways, entryways, closets
    Replaces any 3-way wall switch in singlegang wallbox or multi-gang applications
    Looks like a switch and works like a dimmer
    Built in RFI-Radio Interference Filter
    Positive On-Off action with smooth, full range brightness control
    600W
    120 Volt AC 60Hz
    3-way
    Electromechanical incandescent toggle dimmer
    Illuminated toggle

    ITEM # MFG # COLOR/
    FINISH    		 QTY.
    2464300 6693 CLEAR 1/50

  • 600W CLEAR ILLUMINATED TOGGLE DIMMER – SINGLE-POLE (2464299)

    In the off position, the clear toggle handle glows in the dark
    The perfect solution for those hard to locate switches in dark rooms, hallways, entryways, closets
    This illuminated single-pole toggle dimmer replaces any singlepole wall switch in single-gang wallbox or multi-gang applications
    Looks like a switch and works like a dimmer
    Built in RFI-Radio Interference Filter
    Positive On-Off action with smooth, full range brightness control
    600W
    120 Volt AC 60Hz
    Single-pole
    Electro-mechanical incandescent toggle dimmer
    Illuminated toggle

    ITEM # MFG # COLOR/
    FINISH    		 QTY.
    2464299 2464299 CLEAR 1/50

  • NONMETALLIC SINGLE-GANG OLD WORK BOX (663158)

    8 CI
    1-14″ deep
    Great for walls having little depth
    Nonconductive
    2 integral cable clamps

    ITEM # MFG # PKG. QTY.
    663158 B108B-UPC BOX 1/25

  • 70 CFM CEILING FAN-LIGHT (F002723)

    Fan and light operate separately or together
    Use in tubshower enclosure with GFI branch circuit wiring
    Incandescent bulb – not included
    Graceful white polymeric grille
    Efficient ventilation and bright ceiling light in one easy installation

    ITEM # MFG # SONES QTY.
    F002723 769RL 3 1

  • 70 CFM FAN LIGHT (633001)

    Bright 100-watt lighting capacity
    Bulb not included
    Shatter-resistant light diffusing lens
    Type IC (Insulation Contact)

    ITEM # MFG # SONES PKG. QTY.
    633001 679 3.5 BOX 1

  • 75 OHM BLACK RG59U COAXIAL CABLE (852104)

    ITEM # LENGTH QTY. 852104 100 FT./CARD 1/5

    ITEM # LENGTH QTY.
    852104 100 FT./CARD 1/5

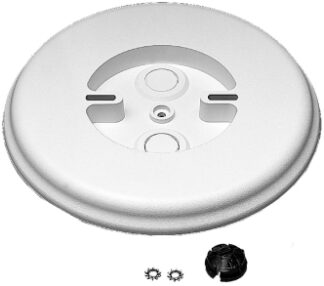

  • 8″ MEDALLION WITH MOUNTING BLOCK (F000695)

    Mounts directly to ceiling joist or to soffit without having to cut into the drywall

    ITEM # MFG # PKG. QTY.
    F000695 MB8 CARD 1/10

  • 9″ INSULATED HIGH-LEVERAGE SIDE-CUTTING PLIERS 2000 SERIES (823426)

    Pliers are individually tested to exceed standards
    High-leverage design provides 46% greater cutting and gripping power than the designs of other pliers
    Streamlined design with sure-gripping, cross-hatched knurled jaws
    The integral guards help prevent hand contact with conductive parts
    The two layers of insulation provide protection against electric shock

    ITEM # MFG # LENGTH PKG. QTY.
    823426 D2000-9NE-INS 9-5/8 IN. CARD 3/1

  • 9V IONIZATION DC W/SILENCER LED SMOKE & FIRE ALARM (604042)

    9V lithium DC ionization smoke alarm
    10-year battery
    Tamper-resistant
    Dust cover
    5-58 base

    ITEM # MFG # PKG. QTY.
    604042 USI-1122L-6P BOX 1/6

Showing 781–810 of 1254 results
