Electrical

  • END Bell® S (710723)

    END Bell® S

    ITEM # MFG # SIZE PKG. QTY.
    710723 E997J-CAR 2 IN. CARD 1/10

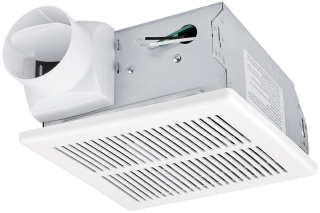

  • EXHAUST AND VENTILATION FAN (299649)

    Exhaust fan
    3″ duct
    Grille size 8-34″ x 8-34″
    Housing 7- 14″ x 7-1/2″ x 3-58″
    Centrifugal blower wheel
    Steel housing, plastic grille
    Rated Power 120V, 45 W

    ITEM # MFG # RATING QTY.
    299649 BPT12-02D 50 CFM/4.0 SONE 1/6

  • EXHAUST AND VENTILATION FAN (299650)

    Exhaust fan
    3″ duct
    Grille size 8-34″ x 8-34″
    Housing 7- 14″ x 7-1/2″ x 3-58″
    Centrifugal blower wheel
    Steel housing, plastic grille
    Rated Power 120V, 49 W

    ITEM # MFG # RATING QTY.
    299650 BPT12-13D 70 CFM/4.0 SONE 1/6

  • EXHAUST AND VENTILATION FAN WITH LIGHT (299651)

    Exhaust fan with light
    UL listed
    110 CFM, 1 Sone, 4″ Duct
    Grille size 15″ x 15″
    Housing 9″ x 9″ x 7-34″
    Steel housing, steel grille, glass diffuser
    With 2*GU24 sockets for 13-watt CFL (Bulbs sold Separately
    Very quiet for bathroom or living room
    Rated Power 120V, 30 W

    ITEM # MFG # CFM SONES DUCT QTY.
    299651 BPT14-24AL 110 1 4 IN. 1

  • EXTENSION ADAPTER 4-12 (662037)

    Single-gang extension ring provides extra depth for increased capacity
    All-weather, die-cast metal
    Four 1/2″ outlets

    ITEM # MFG # QTY.
    662037 BOX 1/24

  • FACTORY-INSTALLED OUTDOOR NEMA 3R) MAIN BREAKER LOAD CENTER (643483)

    BR series
    Nema 3R
    Single-phase
    3-wire
    120/240 VAC
    10,000 A.I.C
    60°/75°C conductor
    Main breaker included
    Order hub separately for top-feed
    10-YEAR WARRANTY

    ITEM # MFG # AMPS MAX CIRCUITS PKG. QTY.
    643483 BR2040B200R 200A 20-40 BOX 1

  • FACTORY-INSTALLED OUTDOOR RESIDENTIAL METER BREAKER COMBO (643532)

    BR series
    120/240 VAC
    Includes main breaker – snap ring type
    10,000 A.I.C
    60°/75°C conductors
    NEMA 3R
    Singlephase, 3-wire
    Overhead or underground service
    Order hub separately for top-feed
    Surface enclosure

    ITEM # MFG # AMPS MAX CIRCUITS PKG. QTY.
    643532 MBE1224B100BTS 100A 24,Dec BOX 1

  • FAN/LIGHT/NIGHT-LIGHT 100 CFM EXHAUST FAN (653034)

    Type IC
    Plug-in, permanently lubricated motor and centrifugal blower wheel provide quiet ventilation
    Designer white grille
    Uses 100-watt bulb and 7-watt night-light (not included)
    Use three-function switch #611961 (sold separately)

    ITEM # MFG # CFM PKG. QTY.
    653034 750 3.5 BOX 1

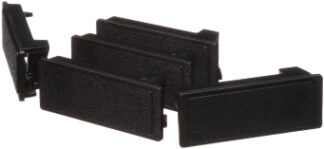

  • FILLER PLATE FOR LOAD CENTERS AND METER COMBINATIONS (156258)

    Used to cover opening in a panel when breaker is removed
    Bag of 5

    ITEM # MFG # PKG. QTY.
    156258 ECQF3P BAG 1/10

  • FIRST ALERT ATOM SMOKE ALARM (2464006)

    This photoelectric alarm is a fraction of the size of a standard alarm
    Advanced micro technology
    Maximum protection – fewer false alarms
    Photoelectric sensor – detects slow smoldering fires
    Long-life lithium CR2 battery included
    Loud and powerful penetrating sound
    Easy installation – Smart product clip system
    10-YEAR LIMITED WARRANTY

    ITEM # MFG # PKG. QTY.
    2464006 P1000 BOX 1/6

  • FIRST ALERT PHOTOELECTRIC 10 YEAR SMOKE/CO TAMPERPROOF COMBO ALARM (2473564)

    10-year lithium power – 10 years of continuous protection
    No battery change required
    Tamperproof sealed alarm – Powercell cannot be removed
    Photoelectric smoke sensing technology
    Electrochemical CO Sensor – Most accurate technology available for detecting carbon monoxide as compared to other sensing technologies
    Silence feature
    Tamper-resistant mounting bracket – Locks alarm to mounting bracket
    Perfect for apartment and dormitory applications
    Meets California Senate Bill #745 requirements
    10-YEAR LIMITED WARRANTY

    ITEM # MFG # PKG. QTY.
    2473564 PC910B BOX 1/12

  • FIRST ALERT® PHOTOELECTRIC 10 YEAR CARBON MONOXIDE TAMPER PROOF ALARM (2473566)

    10-year lithium power – 10 years of continuous protection
    No battery change required
    Tamperproof sealed alarm – Powercell cannot be removed
    Electrochemical CO Sensor – Most accurate technology available for detecting carbon monoxide as compared to other sensing technologies
    Silence feature
    Tamper-resistant mounting bracket – Locks alarm to mounting bracket
    Perfect for apartment and dormitory applications
    10-YEAR LIMITED WARRANTY

    ITEM # MFG # PKG. QTY.
    2473566 CO910B BOX 12/1

  • FIRST ALERT® PHOTOELECTRIC 10 YEAR SMOKE/CO COMBO TAMPERPROOF ALARM (2473565)

    10-year lithium power – 10 years of continuous protection. No battery change required
    Tamperproof sealed alarm – Powercell cannot be removed
    Voice with location – Voice announces programmed location of the unit and danger detected
    Photoelectric smoke-sensing technology
    Electrochemical CO Sensor – Most accurate technology available for detecting carbon monoxide as compared to other sensing technologies
    Silence feature
    Tamper-resistant mounting bracket – Locks alarm to mounting bracket
    Perfect for apartment and dormitory applications
    Meets California Senate Bill #745 requirements
    10-Year Limited Warranty

    ITEM # MFG # PKG. QTY.
    2473565 PC910VB BOX 12/1

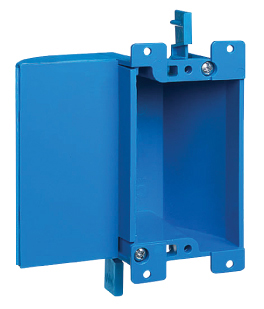

  • FLANGED SINGLE-GANG OLD WORK BOX (669005)

    Single-gang old work flanged
    Shallow box – depth 2″, width 4-14″, length 4″

    ITEM # MFG # PKG. QTY.
    669005 B117RSW BOX 1/30

  • flat 90° corner bracket (461515)

    1/2″ 3-hole

    ITEM # MFG # SIZE PKG. QTY.
    461515 ZAB219 3 1/2″ X 2 HOLE BAG 25/1

  • FLAT UNBREAKABLE VINYL PLUG (612130)

    15A-125V

    ITEM # DESC. COLOR/
    FINISH    		 PKG. QTY.
    612130 DEAD FRONT BROWN BULK 1/25

  • FLOOR BOX COVER BRASS DUPLEX RECEPTACLE 5-3/4″ DIAMETE (F004080)

    Floor box cover
    One piece brass carpet plate
    5-34″ diameter
    Includes sealing gasket and #8 32 x 1″ brass screws
    Use with 68 and 600 series floor boxes

    ITEM # MFG # PKG. QTY.
    F004080 P60CACP BOX 1/4

  • FULLY INSULATED NYLON (630547)

    First choice of the professional
    Funnel-entry feature eliminates wire strand “hang-up” and increases crimping speed with reliability
    Continuous-duty temperature range of -40°F to 194°F (-40°C to 90°C)

    ITEM # MFG # DESC. COLOR/
    FINISH    		 WIRE
    SIZE    		 PKG. QTY.
    630547 IF-16-250-3N DIA TAB. 0.25 FEMALE BLUE 14,Jun 50/BOX 1

  • FUSE PULLER (70-0773)

    FUSE PULLER

    ITEM # MFG # PKG. QTY.
    70-0773 FP-2 CARD 1/200

  • FUSE REDUCER (602450)

    Reduces fuse amperage – one clip size without adding length to the fuse
    Handy for replacement emergencies
    30-60 amps
    PRICE PER PAIR

    ITEM # MFG # AMPS PKG. QTY.
    602450 263-R 60-30A BOX 1/10

  • GALVANIZED GROUND ROD (643602)

    High-strength steel, hot dip galvanized
    Meets ANSI C1353 requirement
    58″ x 8
    ORDER IN MULTIPLES SHOWN (EXCEPT AT PICKUP)

    ITEM # MFG # PKG. QTY.
    643602 Z588 BOX 5/20

  • GANGABLE SWITCH BOX WITH NMSC CLAMPS AND WOOD STUD BRACKET (662173)

    Switch boxes are used to house wiring devices such as switches or receptacles
    Gangable switch box offers the option of constructing a box to hold two or more devices
    Long B bracket face mounts on stud, can be used when space between studs is limited, and offsets box 58″ to clear door molding
    2-22″ deep
    4 priouts
    58″ bracket setback

    ITEM # MFG # DESC. SIZE PKG. QTY.
    662173 529 12.5 C.I. 3 IN. X 2 IN. BOX 1/25

  • GANGABLE SWITCH BOX WITH NMSC CLAMPS AND WOOD/METAL STUD BRACKET (662177)

    Switch boxes are used to house wiring devices such as switches or receptacles
    Gangable switch box offers the option of constructing a box to hold two or more devices
    TS bracket features gauging tabs and recessed nailing spurs
    2-34″ deep
    4 priouts
    Bracket setback 1/2″

    ITEM # MFG # DESC. SIZE KNOCKOUTS PKG. QTY.
    662177 564 14 C.I. 3 IN. X 2 IN. 2, 12 IN. BOX 1/25

  • GASKET (662065)

    For use with Weatherproof Lampholders
    Outer gasket only

    ITEM # MFG # PKG. QTY.
    662065 5611-0 BOX 1/25

  • GENERATOR STANDBY POWER MECHANICAL INTERLOCK MAIN BREAKER (155883)

    Provides a means to ensure that the main breaker powered by utility power within a panel is forced to the OFF position when standby power is in use
    Ensures that the standby source is forced to the ON position when standby power is in use

    ITEM # MFG # AMPS MAX CIRCUITS PKG. QTY.
    155883 ECSBPK02 125A 15 BOX 1

  • GENERATOR-READY INDOOR MAIN BREAKER LOAD CENTER (660055)

    200 amp main breaker indoor nema Type 1 with copper bus
    Flush or surface mounting
    Instead of having one interior like standard load centers, the Siemens generator ready-load center has two interiors
    During normal operating utility conditions, both interiors are powered
    During generator back up conditions, only the lower interior containing critical circuits is powered
    The generator readyload center is compatible with Siemens, Generac, Guardian, and Centurion type standby generators up to 30 kW in size, and any brand of portable generator up to 125A in output
    Works with an automatic standby generator or a portable generator – 660056 (shown in picture) but not included – order separately

    ITEM # MFG # AMPS MAX CIRCUITS PKG. QTY.
    660055 G3042B1200GEN 200A 30-42 BOX 1

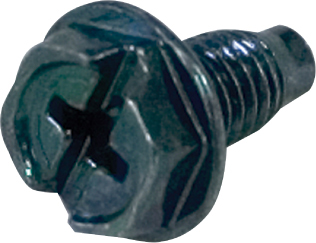

  • GREEN GROUNDING SCREW (624037)

    Green straight slot and hex head 1032 screw with washer
    38″ long
    Used for quick grounding of switch and outlet boxe
    ORDER IN MULTIPLES SHOWN

    ITEM # MFG # PKG. QTY.
    624037 48 BOX 100/1000

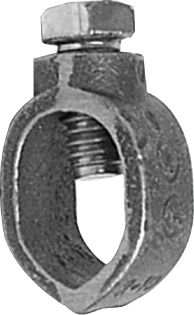

  • GROUND ROD CLAMP (624023)

    58″ copper
    UL approved for direct burial
    Cast of high-strength corrosion-resistant copper alloy
    Fits over 58″ ground rod
    Hex head bolt
    Accommodates wire sizes from #2 stranded to #10 solid
    Bulk

    ITEM # MFG # PKG. QTY.
    624023 B412 BOX 1/50

  • GROUND ROD DRIVER (823136)

    Unique design allows installation of 10′ rods from ground level
    Heavyduty steel construction
    Ergonomic grip provides ease, comfort and safety
    ORDER IN MULTIPLES SHOWN

    ITEM # MFG # DESC. PKG. QTY.
    823136 60DSNT 5/8″ INSERT CARD 10/100

  • GROUND WIRE PIPE CLAMP (624016)

    For connecting #2 thru #10 ground wire to 1/2″ thru 1″ water pipe or copper tube (check local codes)
    Made of die-cast zinc alloy with zinc-plated screws

    ITEM # MFG # PKG. QTY.
    624016 62 0Z. BOX 1/25
