Lighting

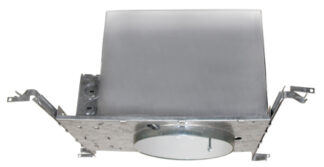

6″ COMPACT FLUORESCENT CANS – HORIZONTAL SOCKET (F000109)
120 volt
2-26w light
Thermal protector in electronic ballast protects from overheating
Captive bar hangers adjust 1/2″-24″
7-½” high
Listed for damp locations and feed-through wiring
IC is UL listed for direct insulation contact
2-CF26DDE

ITEM # DESC. WATTS QTY.

F000109 IC RATED – NEW CONSTRUCTION 2-26W 2/26W
6″ COMPACT FLUORESCENT CANS – VERTICAL SOCKET (F005463)
Fluorescent vertical socket
120 volt, one 13 watt light
Electronic ballast
New construction hanger adjusts 1/2″-24″
7-½” high

ITEM # MFG # WATTS QTY.

F005463 IC/AT-NEW CONSTRUCTION 1-26W 1/6
MERCURY VAPOR LAMP (SX-0718907)
175 watts in clear finish
Sold each

ITEM # MFG # DESC. TYPE COLOR/ FINISH WATTS BASE LUMENS HOURS AVG. LIFE COLOR TEMP. CRI QTY.

SX-0718907 69444 H39KB175 ED28 CLEAR 175W MOGUL 7700 24,000 24,000 45 1
6″ EYEBALL TRIM (F000037)
UL classified for Halo, Juno and Capri cans
Eyeball trim with foam gasket
Fully adjustable
Easy install clips
8″ OD x 4″ ID
BR30/PAR30 not included
SOLD IN PACKS OF 6

ITEM # COLOR/ FINISH QTY.

F000037 WHITE 1/24

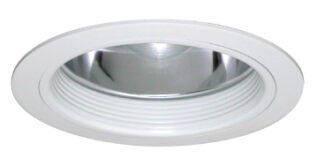

6″ FLUORESCENT BAFFLE TRIM WITH ALZAK REFLECTOR (617185)
6″ white baffle trim with clear alzak reflector and Lexan ring
OD: 7-3/8″, ID: 6-18″

ITEM # QTY.

617185 1/6
6″ NEW CONSTRUCTION NON-IC SHALLOW RECESSED HOUSING (617548)
For new construction shallow housing
Shallow design allows for tight spaces
Non-IC (non-insulation contact)
Use with approved trims
120V
6-18″ W X 11- ¾” L X 5-½” H

ITEM # QTY.

617548 617548
6″ NEW CONSTRUCTION RECESSED UNIVERSAL HOUSING (FOR IC LINE VOLTAGE INSTALLAT ION)
For new construction
Use with approved trims
120 volt
7-½” W x 10-¾” L x 7-¼” H

ITEM #

FOR IC LINE VOLTAGE INSTALLAT ION
6″ PREMIUM OPEN WHITE EYEBALL (613624)
Listed for damp location
Rated for 65BR30 and 75PAR30

ITEM # MFG # PKG. QTY.

613624 6.00E+01 BOX 1/6

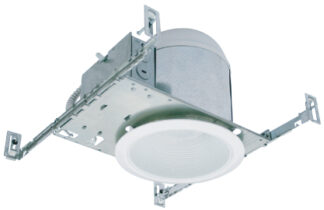

6″ RECESSED IC 100W CAN (617734)
Takes up to 100w bulb
120 volt
Thermal protector protects from overheating
Captive bar hangers adjust 1/2″-24″
Ground wire installed
Use in ceilings up to 1-3/8″ thick
Listed for damp locations and feed-through wiring
IC is UL listed for direct insulation contact
SOLD IN PACKS OF 4

ITEM # MFG # DESC. QTY.

617734 108RA8X-IC IC RATED 100W 1/4
6″ RECESSED NEW CONSTRUCTION IC LINE VOLTAGE AIRTIGHT HOUSING (298939)
6″ Line voltage IC new construction housing fits most standard trims
Uses up to 75W BR30/PAR30, 75W BR40/PAR38, or 40W A19 lamp (lamp not included)
7-18″W X 9-¼” L X 7-¼”H

ITEM # QTY.

298939 1/6
6″ RECESSED NEW CONSTRUCTION IC LINE VOLTAGE HOUSING (298940)
6″ Line voltage IC new construction housing fits most standard trims
Max 75W BR30/PAR30, 75W BR40/PAR38, or 40W A19 lamp (lamp not included)
7-½”W X 10-¾”L X 7-¼”H

ITEM # QTY.

298940 1/6

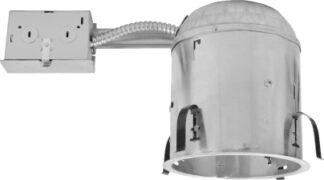

6″ RECESSED REMODEL IC LINE VOLTAGE HOUSING (298946)
6″, 120V IC housing fits most standard trims
Max 150W BR40/PAR38 or 100W A-19 lamp (lamp not included)
6-3/8″W X 10″L X 7-¼”H

ITEM # QTY.

298946 1/6
6″ RECESSED REMODEL NON-IC LINE VOLTAGE AIRTIGHT HOUSING (298941)
6″ Line voltage non-IC remodel housing
Max 75W BR30/PAR30, 75W BR40/PAR38, or 40W A19 lamp (lamp not included)
7-½”H X 6-18″W X 11-¾”L

ITEM # QTY.

298941 1/6

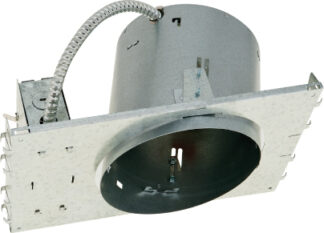

6″ RECESSED SLOPE CANS – NEW CONSTRUCTION (F002932)
6″ sloped
Ceiling pitch 2/12-6/12
120 volt
Swivel socket
Captive hanger adjusts 1/2″-24″
Non-IC rated
BR30/PAR30, BR40/PAR38 75 watt maximum, 40 watt A19
Lamps not included

ITEM # MFG # QTY.

F002932 NON-IC RATED 1/4
6″ REMODEL HOUSING (NON-IC LINE VOLTAGE – WHITE)
120 volt
Fits most standard trims
For remodel
6-3/8″ W x 10″ L x 7-¼” H
ORDER IN MULTIPLES SHOWN

ITEM #

NON-IC LINE VOLTAGE – WHITE
6″ REMODEL IC/NON-IC HOUSING (613618)
6″ IC/non-IC recessed housing
Rated for either IC (direct contact with insulation) or non-IC and AT for remodel applications
One-piece aluminum self-flanged can with remodel clips locks securely into place
65BR30/75PAR30 lamps not included

ITEM # MFG # SIZE PKG. QTY.

613618 L7XR AT 15″ L X 13.25″ W BOX 1/6
6″ REMODEL RECESSED HOUSING (FOR NON-IC LINE VOLTAGE INSTALLATION)
6″ Remodel housing for line voltage
Use with approved trims
120V
6-3/8″ W X 10″ L X 7-¼” H

ITEM #

FOR NON-IC LINE VOLTAGE INSTALLATION
6″ SHALLOW IC-RATED REMODEL HOUSING (613620)
6″ IC shallow recessed housing
Rated IC (direct contact with insulation) or non-IC and AT for remodel applications
One-piece aluminum self-flanged can with remodel clips locks securely into place
Only 5-¾” high
65BR30/75PAR30 lamps not included

ITEM # MFG # SIZE PKG. QTY.

613620 L7PR AT 12.38″ L X 7.25″ W BOX 1/6

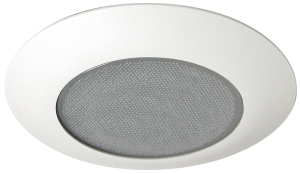

6″ VAPOR TRIM (F000027)
UL classified for Halo, Juno and Capri cans
Rubber gasket
8″ OD x 5″ ID
A-lamp not included
SOLD IN PACKS OF 6

ITEM # DESC. QTY.

F000027 METAL-PEBBLED LENS 1/6
7′ STEEL LAMP POST (613252)
7′ STEEL LAMP POST

ITEM # QTY.

613252 1/6
8-FOOT TANDEM FLUORESCENT STRIP LIGHT (673006)
Indoor double strip lights
10° startup
Contains MPF electronic ballast, bi-pin
Uses 4-F32 T8 or 4-F40 T12 lamps (not included)
4-3/16″ W x 96″ L x 3-¾” D
120V, angle bracket design

ITEM # QTY.

673006 1

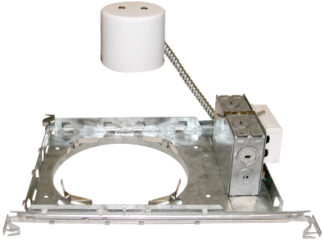

8″ COMPACT FLUORESCENT CANS – VERTICAL SOCKET (F000111)
Vertical socket
One light, 26 watt maximum
120/277 volt
Thermal protected by fuse in electronic ballast
Captive bar adjusts 1/2″-24″
Non-IC, new construction

ITEM # DESC. WATTS QTY.

F000111 NON-IC/NEW CONSTRUCTION 1-26W 1/4
PREPAID BATTERY RECYCLEPAK® (881278)
Dry cell battery recycling kit – .5-gallon pail

ITEM # MFG # QTY.

881278 SUPPLY041 1/10

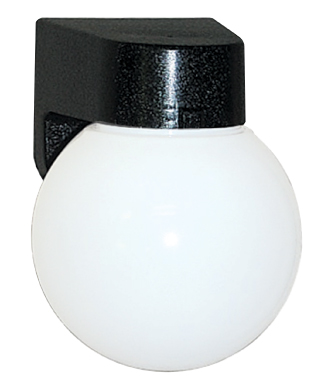

9W FLUORESCENT WALL FIXTURE (671936)
Black polycarbonate housing and 6″ ball
1-9W G23 base CFL (included)
7-1/2″ H x 6″ W

ITEM # QTY.

671936 1
9W OR 13W FLUORESCENT WALL FIXTURE (671389)
Black polyfitter
Clear prismatic threaded jar
Uses 1-GX23 base CFL (included)

ITEM # SIZE LAMPS QTY.

671389 8-1/4″ 1-13W 1/12
R20 INCANDESCENT REFLECTOR LAMP (F005631)
Medium (E26) base
Frosted
Priced and sold each
12 bulbs per case

ITEM # MFG # DESC. TYPE WATTS VOLT S LUMENS HOURS AVG. LIFE DIAMETER QTY.

F005631 S3849 45R20 FLOOD 45 130 330 2,000 2-½” 1/96

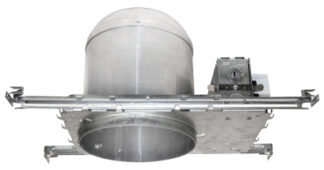

AIR TIGHT AND IC RATED NEW CONSTRUCTION HOUSING 6 IN. (617176)
Airtight and IC rated for new construction
Thermally protected switch in the electronic ballast
Approved for Washington State Energy Code
UL listed for damp locations
Uses 1-CF13DDE827 lamp (not included)
10-¼” L x 7″ W x 7-½” H

ITEM # QTY.

617176 1/6

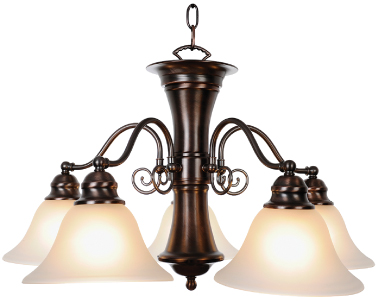

WELLINGTON(TM) 5-LIGHT CHANDELIER (USES 5-60W MAX. MEDIUM (E26) BASE BUlbS (NOT INCLUDED))
Frosted glass
24″ W x 14-¾” H

ITEM #

USES 5-60W MAX. MEDIUM (E26) BASE BUlbS (NOT INCLUDED)
AT/IC FLUORESCENT 6″ NEW CONSTRUCTION HOUSING (AT/IC LINE VOLTAGE)
Airtight & IC rated for new construction
Thermally protected switch in the electronic ballast
UL listed for damp locations
Uses 2-CF13DDE827 lamps (not included)
1/2″L x 7-¾”W x 7-¾”H

ITEM #

AT/IC LINE VOLTAGE
AUBREY 1-LIGHT WALL MOUNT (556183)
Frosted glass
10.75″ High x 4.75″ Wide
Uses (1) 60 Watt medium base bulb
UL Listed for use in Damp Locations
10-YEAR LIMITED WARRANTY

ITEM # COLOR/ FINISH

556183 SATIN NICKEL
