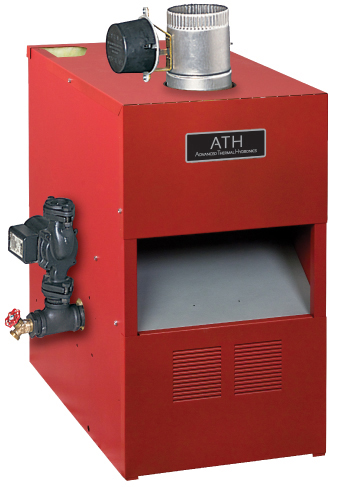

HWX SERIES BOILER

The HWX gas-fired residential boilers combine application flexibility with high efficiency
Whether vented through a conventional chimney or through the wall, the HWXHVX offers efficient, dependable service
Cast iron construction
Completely packaged and wired natural gas hot water boiler
Deluxe insulated metal jacket with removable front panel
ASME pressure relief valve
Taco “007” circulator
Temperature pressure gauge
Flame rollout safety switch
High limit and control center
Intermittent Honeywell SmartValve ignition system
Automatic vent damper
Safety spill switch
1-YEAR ON PARTS, LIMITED LIFETIME WARRANTY ON CAST IRON SECTIONS

SKU: N/A Category: HVAC

Product ID	Clear

Description

ITEM #	MFG.	DESC.	BTU/INPUT RANGE	BTU OUTPUT	AFUE (%)	DIMENSION IN. (WxDxH)	WEIGHT	QTY.
108314	HWX-70-INT	INTERMITTENT IGNITION	70,000	58,000	82.2	12-½ x 26-5/8 x 31-3/8	315	1
108315	HWX-105-INT	INTERMITTENT IGNITION	105,000	86,000	82.1	15-7/8 x 26-5/8 x 31-3/8	375	1
108316	HWX-140-INT	INTERMITTENT IGNITION	140,000	115,000	82	19-¼ x 26-5/8 x 31-3/8	435	1
108317	HWX-175-INT	INTERMITTENT IGNITION	175,000	143,000	82	22-5/8 x 26-5/8 x 31-3/8	505	1
108318	HWX-195-INT	INTERMITTENT IGNITION	195,000	160,000	82	26 x 26-5/8 x 31-3/8	575	1

Additional information

Product ID	108314, 108315, 108316, 108317, 108318
